Quick Answer: To configure WireGuard VPN on a Raspberry Pi, install WireGuard via
apt, generate public/private key pairs, create/etc/wireguard/wg0.confwith your interface and peer definitions, enable IP forwarding, configureiptablesNAT rules, and start the service withsystemctl enable --now wg-quick@wg0. The entire setup takes roughly 20–40 minutes on a Pi 3B+ or newer.
There's a particular kind of quiet satisfaction that comes from routing your laptop's traffic through a small green circuit board sitting on a shelf next to your router, knowing that every packet leaving a hotel Wi-Fi network is encrypted before it even touches the AP. WireGuard on a Raspberry Pi is that fantasy made real — and the gap between the fantasy and the operational reality is exactly what most guides refuse to talk about honestly.
WireGuard isn't new anymore. It merged into the Linux kernel mainline at version 5.6 in March 2020, and the cryptographic primitives it relies on — Curve25519 for key exchange, ChaCha20 for symmetric encryption, Poly1305 for authentication, BLAKE2s for hashing — were already considered battle-tested by the time Linus Torvalds called it "a work of art" in comparison to the "horrible mess" of OpenVPN and IPsec. That praise echoed across Hacker News threads for weeks.
But running WireGuard on a Pi as a home-network VPN gateway is a different class of problem than reading about its elegant codebase. It involves NAT hairpinning, dynamic IP address management, kernel module availability across Pi OS versions, DNS leak edge cases, iptables vs. nftables compatibility splits, and — if you have multiple clients — a peer management story that nobody has fully solved cleanly, all of which can be exacerbated by underlying Wi-Fi packet loss issues on your network.
This guide covers how the system actually works, where it breaks, and what workarounds the community has developed over years of running this in production on everything from Pi Zero 2 W to Pi 4 to Pi 5.
Understanding the WireGuard Architecture Before You Touch a Config File
How WireGuard Differs From Traditional VPN Tunneling on Home Network Infrastructure
Most home VPN tutorials treat WireGuard as "OpenVPN but faster." That framing causes real operational problems. WireGuard is a Layer 3 tunnel. It doesn't have a concept of connection state in the traditional sense. There's no handshake that "opens" a session — peers exchange encrypted UDP packets whenever they have traffic to send, and the tunnel simply exists as a network interface (wg0) with routing rules attached.
This matters on a Raspberry Pi home-network setup because:
- Firewall rules are stateless from WireGuard's perspective. Your iptables rules need to explicitly allow forwarded traffic, not just "established" connections.
- DNS is entirely your problem. WireGuard doesn't touch DNS. If you don't configure DNS in the client's
[Interface]block or point it at Pi-hole, you will leak DNS queries to your ISP even when the tunnel is "up." - Roaming clients work differently. Because WireGuard uses public-key cryptography for peer identity, a client can change its IP address (roaming between cellular and Wi-Fi) and the tunnel reconnects automatically — but only if the server-side endpoint config allows it.
The Pi sits in your home network behind a residential ISP router. That router has a public IP address (possibly dynamic), and your Pi has a private RFC1918 address (likely 192.168.1.x or 10.0.0.x). WireGuard listens on a UDP port (default 51820). You need port forwarding from your router to the Pi, ensuring your network setup is free of Wi-Fi dead zones that could hinder connectivity. If your ISP uses CGNAT (Carrier-Grade NAT), you are behind two layers of NAT, and a standard inbound port-forward-based setup will not work at all — a point that guides frequently bury in footnotes.
Hardware and OS Prerequisites for WireGuard VPN on Raspberry Pi
Supported Pi Models and Kernel Considerations
WireGuard requires Linux kernel 5.6+ for native support. On Raspberry Pi OS (Bookworm, based on Debian 12), you get kernel 6.1.x out of the box, and WireGuard is available as a standard package. On older Bullseye installs, the kernel is 5.15.x — still fine. The real trouble starts if someone is running a years-old Buster install (kernel 4.x), where wireguard-dkms is required and DKMS compilation on a Pi 3 can fail silently if linux-headers aren't properly matched to the running kernel version.
A Reddit thread from r/selfhosted (circa 2022, still referenced frequently) documented exactly this failure mode: user installs wireguard on Buster, the package installs cleanly, wg-quick up wg0 returns no error, but ip link show wg0 shows nothing because the DKMS module never compiled successfully. The fix involves checking dkms status, manually installing the correct headers via sudo apt install raspberrypi-kernel-headers, and recompiling. Nobody in the original thread figured this out for three days.

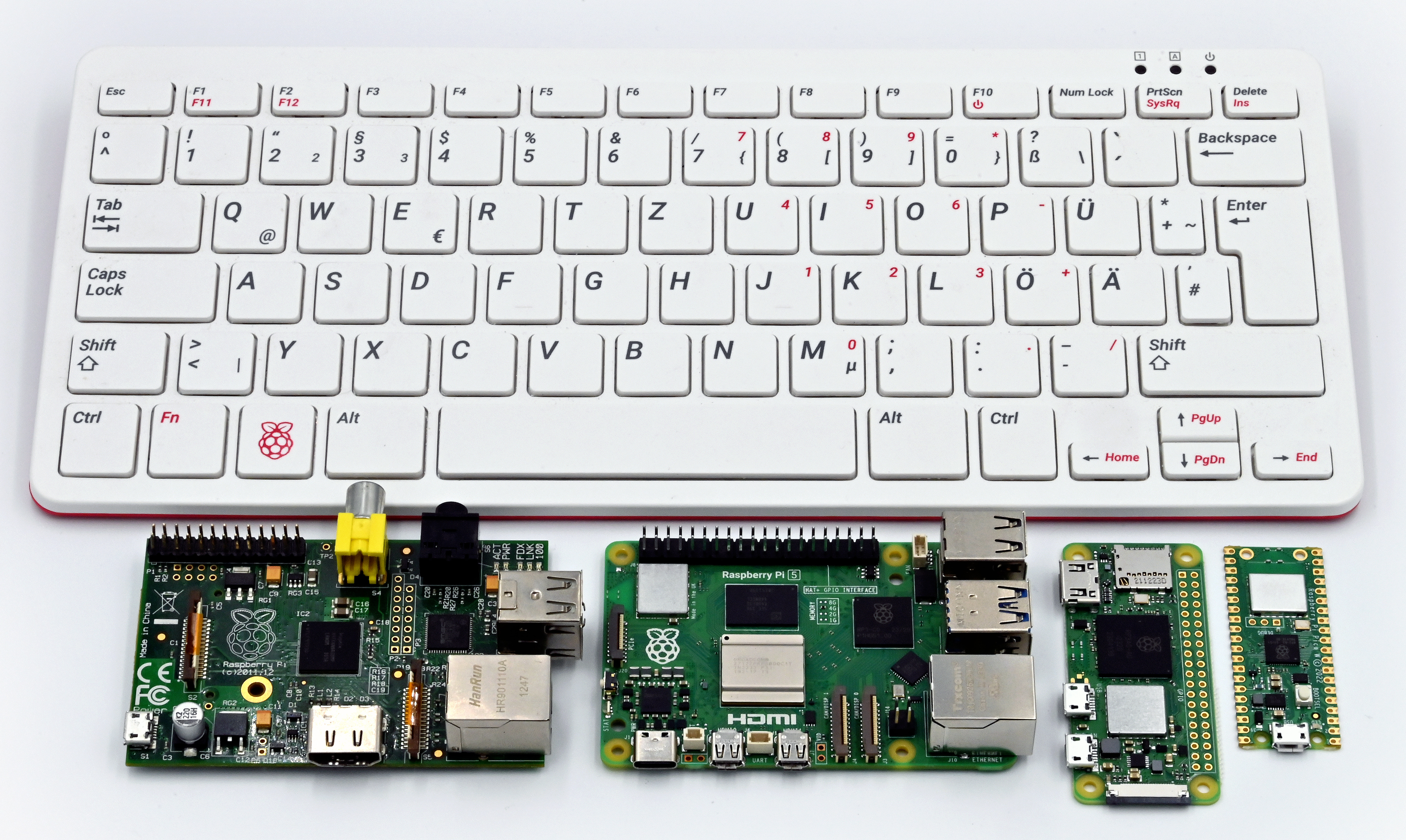

Recommended hardware:
- Pi 3B+ or Pi 4 for any multi-client or high-throughput scenario
- Pi Zero 2 W is viable for single-client light use but will saturate CPU during sustained transfers
- Pi 5 is overkill for WireGuard alone but handles it trivially alongside other services
SD card note: The WireGuard private key and config will be stored at /etc/wireguard/wg0.conf. On a Pi running off SD card, this is fine for home use but is not appropriate for high-security environments where SD card theft is a realistic threat.
Step-by-Step: Installing WireGuard on Raspberry Pi OS
Initial System Preparation and Package Installation
sudo apt update && sudo apt upgrade -y
sudo apt install wireguard wireguard-tools -y
On current Raspberry Pi OS Bookworm, this is all you need. The wireguard package pulls in the kernel module. wireguard-tools gives you wg and wg-quick.
Verify the module loads:
sudo modprobe wireguard
lsmod | grep wireguard
If this returns nothing, your kernel doesn't support WireGuard natively and you need DKMS. Stop and diagnose before proceeding.
Generating Cryptographic Keys for WireGuard Peer Authentication
wg genkey | tee /etc/wireguard/server_private.key | wg pubkey > /etc/wireguard/server_public.key
chmod 600 /etc/wireguard/server_private.key
The private key should never leave the server. The public key is what you share with clients. This is the core of WireGuard's security model: there are no certificates, no CA infrastructure, no revocation lists. A peer is authenticated solely by possession of the corresponding private key.
This simplicity is also a security footgun. If a client private key is compromised, there is no revocation mechanism. You remove the peer from wg0.conf and reload the interface. That's it. For a home VPN, this is entirely acceptable. For a corporate deployment with 200 employees, it creates key management problems that WireGuard's design intentionally sidesteps rather than solves.
Configuring the WireGuard Server Interface on Raspberry Pi
The /etc/wireguard/wg0.conf Structure and Network Addressing
Create the server configuration:
[Interface]
Address = 10.8.0.1/24
ListenPort = 51820
PrivateKey = <contents of server_private.key>
PostUp = iptables -A FORWARD -i wg0 -j ACCEPT; iptables -A FORWARD -o wg0 -j ACCEPT; iptables -t nat -A POSTROUTING -o eth0 -j MASQUERADE
PostDown = iptables -D FORWARD -i wg0 -j ACCEPT; iptables -D FORWARD -o wg0 -j ACCEPT; iptables -t nat -D POSTROUTING -o eth0 -j MASQUERADE
[Peer]
PublicKey = <client public key>
AllowedIPs = 10.8.0.2/32
A few non-obvious operational details here:
The Address = 10.8.0.1/24 line assigns the Pi a VPN-internal IP. 10.8.0.0/24 is the tunnel subnet — your clients will get addresses in this range. Don't overlap this with your home LAN subnet (192.168.1.0/24) or traffic routing breaks in confusing, hard-to-debug ways. Several GitHub issues on the wireguard-tools repository document exactly this complaint: users picking 192.168.1.0/24 for both the LAN and the VPN tunnel, then spending hours debugging why clients can't reach the Pi after connecting.
The PostUp and PostDown rules use eth0 as the outbound interface. Verify your interface name first. On newer Pi OS versions, interface naming may be eth0 or could be something like enxb827ebe12345 depending on udev configuration. Check with ip link show before copying any PostUp rule verbatim.
Enabling IP Forwarding for VPN Gateway Functionality
WireGuard is a tunnel, but making the Pi act as a router requires the kernel to forward packets between interfaces:
sudo nano /etc/sysctl.conf
Uncomment or add:
net.ipv4.ip_forward=1
net.ipv6.conf.all.forwarding=1
Apply immediately without reboot:
sudo sysctl -p
Skipping this step is the single most common reason people's WireGuard setups "work" (the tunnel comes up, pings to 10.8.0.1 succeed) but no actual internet traffic flows through. The symptom is maddening: the interface shows traffic counters incrementing, but the client can't load a webpage. Forums are littered with three-day-old threads where someone finally replies "did you enable ip_forward" and the OP posts an embarrassed acknowledgment.
Client Configuration: Generating Per-Device WireGuard Profiles
Creating Individual Peer Configs for Laptops, Phones, and Remote Devices
For each client, generate a new keypair on the client device or securely on the server:
wg genkey | tee client1_private.key | wg pubkey > client1_public.key
Client config (client1.conf):
[Interface]
PrivateKey = <client1 private key>
Address = 10.8.0.2/32
DNS = 10.8.0.1
[Peer]
PublicKey = <server public key>
Endpoint = your.home.ddns.net:51820
AllowedIPs = 0.0.0.0/0, ::/0
PersistentKeepalive = 25
The AllowedIPs = 0.0.0.0/0 line is what routes all client traffic through the tunnel (full-tunnel mode). If you only want to access your home network resources (split-tunnel), you'd change this to 10.8.0.0/24, 192.168.1.0/24.
PersistentKeepalive = 25 sends a keepalive packet every 25 seconds. This is necessary when the client is behind NAT — without it, the NAT mapping on the client's router expires and incoming packets from the Pi can no longer find the client. Mobile clients behind CGNAT need this. Desktop clients on a home network probably don't. The 25-second value is a community convention; some operators use 15 seconds for more aggressive keepalive at higher bandwidth cost.
DNS = 10.8.0.1 — this assumes you're running Pi-hole or another DNS resolver on the Pi itself. If you're not, use 1.1.1.1 or 8.8.8.8, but understand that your DNS queries will now go to a third-party resolver rather than being handled privately. This is a subtle privacy/functionality tradeoff that many tutorials paper over.
Add the client's public key back to the server's wg0.conf:
[Peer]
PublicKey = <client1 public key>
AllowedIPs = 10.8.0.2/32
Reload without dropping existing connections:
sudo wg syncconf wg0 <(wg-quick strip wg0)
This is better than sudo wg-quick down wg0 && sudo wg-quick up wg0, which drops all active connections. The syncconf approach is less documented but critically important in production — especially if you have family members using the VPN and you're adding a new device.
Dynamic DNS: Solving the Moving-Target Home IP Problem
Handling ISP Dynamic IP Addresses for Stable WireGuard Connectivity
Unless you pay your ISP for a static IP (and many residential ISPs don't offer this at any price), your home's public IP address will change periodically. For WireGuard clients to consistently reach your Pi, you need a DDNS hostname.
Options that the self-hosting community actually uses:
- DuckDNS (free, widely used, simple cron-job updater)
- Cloudflare DNS API (requires a domain, more reliable for production)
- No-IP (free tier has annoying monthly confirmation emails)
- Afraid FreeDNS (aging but functional)
DuckDNS setup on the Pi:
mkdir ~/duckdns
nano ~/duckdns/duck.sh
#!/bin/bash
echo url="https://www.duckdns.org/update?domains=YOURDOMAIN&token=YOURTOKEN&ip=" | curl -k -o ~/duckdns/duck.log -K -
chmod 700 ~/duckdns/duck.sh
crontab -e
# Add: */5 * * * * ~/duckdns/duck.sh >/dev/null 2>&1
The CGNAT problem: If your ISP uses CGNAT (common with mobile broadband, some cable providers, increasingly common as IPv4 exhaustion deepens), you don't have a publicly routable IP at all. Port-forwarding doesn't work. The Pi cannot receive inbound connections.
Workarounds the community uses:
- Rent a cheap VPS (€3–5/month from Hetzner, DigitalOcean, etc.), run WireGuard there as the "server," and have your Pi connect outbound to the VPS as a peer. This reverses the connection direction.
- IPv6 if your ISP provides it — CGNAT is IPv4-only, and a Pi with a public IPv6 address can accept inbound connections directly.
- Tailscale or Headscale — which handle NAT traversal automatically using DERP relay servers. This is increasingly the community recommendation for CGNAT scenarios, though it introduces third-party dependency.
The CGNAT reality is one of the most under-discussed failure modes in WireGuard-on-Pi guides. Someone follows a perfectly correct tutorial, does everything right, and then discovers their ISP has put them behind CGNAT and the entire architecture needs to change.
Enabling and Managing the WireGuard Service
Systemd Integration and Automatic Startup on Raspberry Pi Boot
sudo systemctl enable wg-quick@wg0
sudo systemctl start wg-quick@wg0
sudo systemctl status wg-quick@wg0
Check tunnel status:
sudo wg show
This output is worth understanding in detail. Each peer shows:
- latest handshake: time since last successful cryptographic handshake. If this
